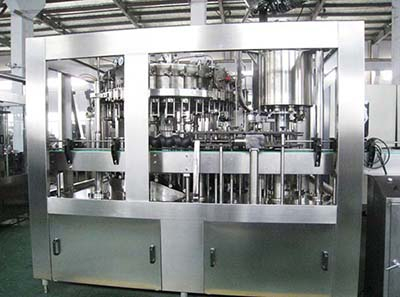

soda filling machine/cola filling plant/fanta filling equipment

soda filling machine/cola filling plant/fanta filling equipment

  • Min.Order Quantity: 1 Set
  • Supply Ability: 15 Sets per Month
  • Port: ShangHai
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-07-31
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  XinMingTao
  • Model Number:  DCGF12-12-4
  • Weight: 1000.000 kg

Products Introduction:

Hot sale!!! Soda filling machine/cola filling plant/fanta filling equipment is used to fill cola, sprite, soda water and other carbonated beverage.



All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.



The carbonated soft drink filling machine was equipped with suspension type air conveyor and frequency control of motor speed.



This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: counter pressure filling with holding bottle neck. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.



This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.



We are the automatic carbonated soft drink filling machine manufacturer in China.


---Descriptions

1. The Soda filling machine/cola filling plant/fanta filling equipment consists of automatic bottle washing machine, balanced pressure filling machine, automatic capping machine and conveying system

2. The whole line is monoblock 3 in 1.

3. The machine is made of high quality SUS304 stainless steel.

4. It is ideal selection for beverage factory due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.


  • Place of Origin:  China
  • Brand Name:  XinMingTao
  • Model Number:  DCGF12-12-4
  • Weight: 1000.000 kg

---Technical parameter



Model

DCGF8-8-8-3

DCGF12-12-6

DCGF18-18-6

DCGF24-24-8

DCGF32-32-10

DCGF40-40-10

DCGF50-50-15

Washing No

8

16

18

24

32

40

50

Filling No

8

12

18

24

32

40

50

Capping No

3

6

6

8

10

10

12

Production capacity(500ml b/h)

2000

4000

7000-8000

10000-12000

12000-15000

15000-18000

20000-22000

Installed Capacity(kw)

3

3.5

4

4.8

7.6

8.3

9.6

Overall size

2250*1800*2400

2450*1800*2400

2650*1900*2400

2900*2100*2400

4100*2400*2400

4550*2650*2400

5450*3210*2400
