- Place of Origin: China
- Brand Name: XinMingTao
- Model Number: DCGF12-12-4
- Weight: 1000.000 kg
Products Introduction:

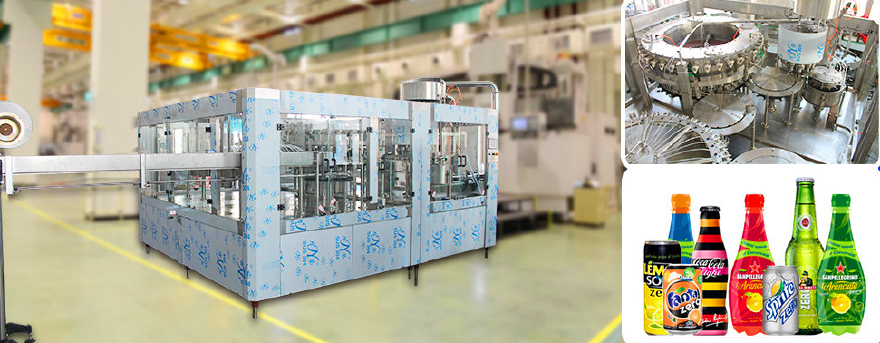

Hot sale!!! Automatic 3 in 1 carbonated gas water filling machine is used to fill cola, sprite, soda water and other carbonated beverage.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.
The carbonated soft drink filling machine was equipped with suspension type air conveyor and frequency control of motor speed.
This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: counter pressure filling with holding bottle neck. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
We are the automatic carbonated soft drink filling machine manufacturer in China.
---Descriptions

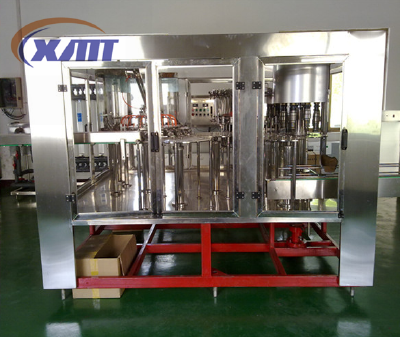

1. The automatic 3 in 1 carbonated gas water filling machine consists of automatic bottle washing machine, balanced pressure filling machine, automatic capping machine and conveying system
2. The whole line is monoblock 3 in 1.
3. The machine is made of high quality SUS304 stainless steel.
4. It is ideal selection for beverage factory due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.
- Place of Origin: China
- Brand Name: XinMingTao
- Model Number: DCGF12-12-4
- Weight: 1000.000 kg
---Technical parameter
Model | DCGF8-8-8-3 | DCGF12-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-10 | DCGF50-50-15 |
Washing No | 8 | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 3 | 6 | 6 | 8 | 10 | 10 | 12 |
Production capacity(500ml b/h) | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 | 20000-22000 |
Installed Capacity(kw) | 3 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size | 2250*1800*2400 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450*3210*2400 |
