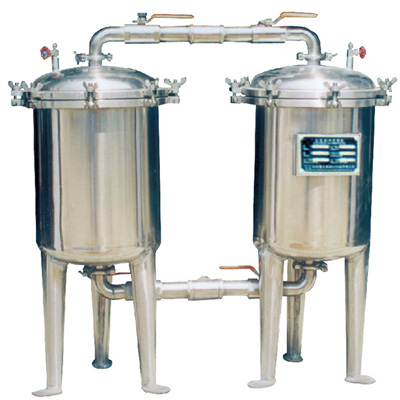

Double filter
Description:
This double filter is used to remove and purify every kind of solid impurity which is invisible to the naked eye in the fresh milk, sugar solution and beverage. Two pieces of filter alternate to use, it could change the filter cloth without stopping the machine and is suitable for long term continuous production.
Structure and principle of the machine
The machine is made of two cylinders with SUS304 material. It adopts the stainless steel welded construction, surface polish internal and external and air discharge valve in the top for discharging air convenient during the production.
The pipe fitting adopts the expansion connection and is tested by 0.3Mpa water pressure. The start and close of three-way screw spiral cock is flexible. The machine has compact structure, easy operation and convenient maintenance.
- Place of Origin: China
- Brand Name: XinMingTao
- Model Number: DF-1
- Weight: 30.000 kg
Main technology data
| Capacity | 1000L/H |
| Filter area | 0.15m2 |
| Filter temperature | ≤150℃ |
| Filter precision | 5 um |
| Material | SUS304 |
| Filter bag | Stainless steel filter bag |
| Using pressure | 0.2Mpa |
| Pipe diameter of inlet | D 38mm |
| Pipe diameter of outlet | D 38mm |
| Dimension(L*W*H) | 700*300*800mm |
| Weight | 70kg |
