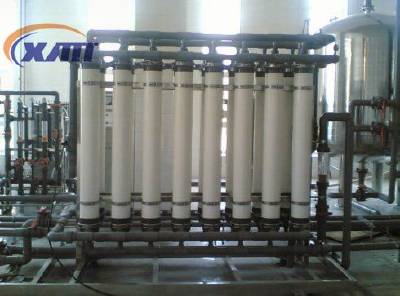

Hollow fiber filter

  This ultra hollow fiber filter is used to filter the raw water for mineral water or beverage.

It adopts dissymmetrieal semipermeable film which is made from macromolecule material with special process. The raw liquid flows under pressure, inside or outside the film. The macromolecule substance and colloid particles in the raw liquid are clogged at the film surface and are brought away by circulating raw liquid. Then the liquid becomes inspissated, and further more, the substance in liquid is separated.

We also have SUS304 membrane film and pipe for your choice.

Main Technology Data:

Capacity: 3T/H

Material: Plastic membrane film and UPVC pipe

PH Value With Standing: 2-13

Working Temperature(℃): 5-45

Working Pressure(Mpa): ≤0.15

Dimension: 1500×450×1650mm

Weight(kg):200kg

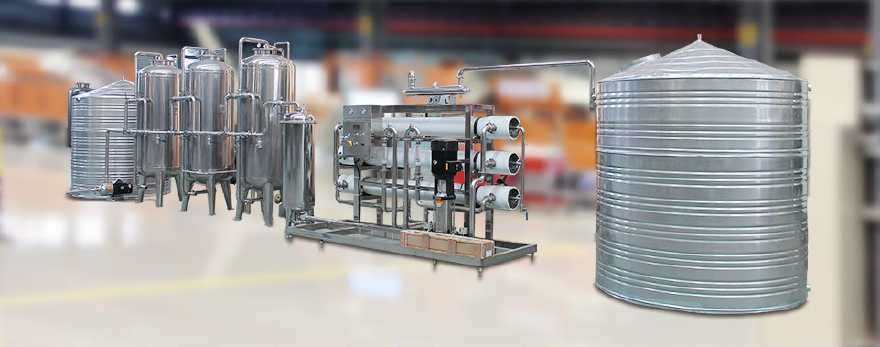

Normal mineral water treatment line:

Raw water tank -- Raw water pump-- Quartz sand filter -- Active carbon filter -- Precision filter -- Ultra hollow fiber filter- UV sterilizer / Ozone sterilizer -- Pure water storage tank.
