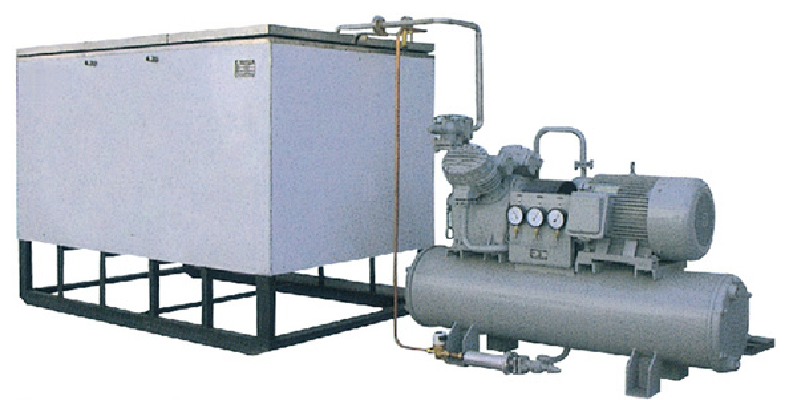

Cooling water tank / water chiller/ water cooling tank
The syrup water is put into the Cooling water tank / water chiller/ water cooling tank,to reduce the temperature below 5degree,then the syrup water can be mixed with CO2;
The tank contains compressor using Freon F-12 as refrigerant, and pressure sensor and temperature regulator for automatic controlling. It is corollary equipment for aerated water and sparkling wine making industry.
The syrup water is put into the tank,to reduce the temperature below 5degree,then the syrup water can be mixed with CO2 to make sure enough CO2 content in the drink;
- Place of Origin: China
- Brand Name: XinMingTao
- Model Number: LY-6000
- Weight: 1500.000 kg
Main Technology data
Model : | LY-1600 | LY-2000 | LY-3000 |
Compressor Model : | 2F6.3-S | JZS-2F-10 | JZS-4F-10 |
Tank Volume(m*3) : | 1.6 | 2 | 3 |
Vaporizing Area(m*2) : | 7.2 | 11 | 20 |
Refrigerating Capacity(kg/h) : | 33440 (double) | 58520 | 117040 |
Water Output(kg/h) : | 400-800 | 1000-1500 | 1500-2000 |
Output Water temperature() : | 0-5 | 0-5 | 0-5 |
Power(kw) : | 6 (double) | 11 | 22 |
Overall Dimensions : | 2200×1200×1800 | 2200×1200×1800 | 2200×1250×1800 |
Weight(kg) : | 1050 | 1230 | 1250 |
