Automatic plastic bottle cap capping machinee



Product Description:



   We supply different types of capping machines, which are applicable for various plastic caps, aluminum screw caps, ultrahigh aluminum caps, crown caps, sport caps, corks and other special caps.



    Our automatic plastic bottle capper can handle most bottle cap types, diameters of which range from 10mm to 100mm, and can handle up to 200 bottles per minute. The new innovative design makes it easy to use and maintenance free. When using the ASP series machine, the operator is only required to pour the caps into the cap tank, then the cap feeder will place the caps on the bottles and the capper will secure the caps onto the bottles by three pairs of wheels automatically. We offer 3 kinds of  cap feeders for you to choose- Raising, Tilted Plate or Vibrating Cap Feeder. You can choose as your requirement.

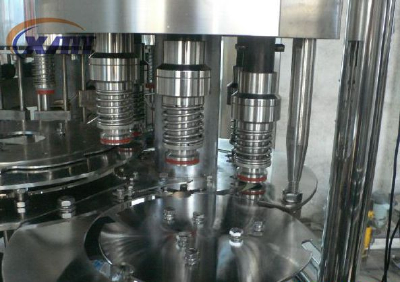

    This machine consists of turntable, conveyor, guaduator, aluminum cap oscillator and electric control system etc. Bottle is feeding by turntable and conveyor, bottle positioning by guaduator. The capping head move up and down and rotate at the same time to seal the aluminum cap with the help of the graduator.



Features Including:


1. We adopt the mode of 'one motor controls one capping wheel', which can ensure the machine works stably and keep consistent torque under long term working condition.

2. The clamping belts can be adjusted separately, which allows the machine to be suitable for capping bottles with various heights and shapes.

3. If you choose the optional cap guiding system together with the machine, it will then also be suitable for pump caps.

4. The convenient construction adjustment system is equipped with precise ruler and counter.

5. The torque limiters can ensure the torque consistency effectively.

6. The mainframe can be lifted and descended automatically by a motor.





Technical Specifications:



Cap Dia.:          10~100mm

Bottle Height:    60~350mm

Power:              1.5KW

Dimensions:      According to the cap feeder equipped


  • Place of Origin:  China
  • Brand Name:  XinMingTao
  • Model Number:  XMT
  • Weight: 300.000 kg
