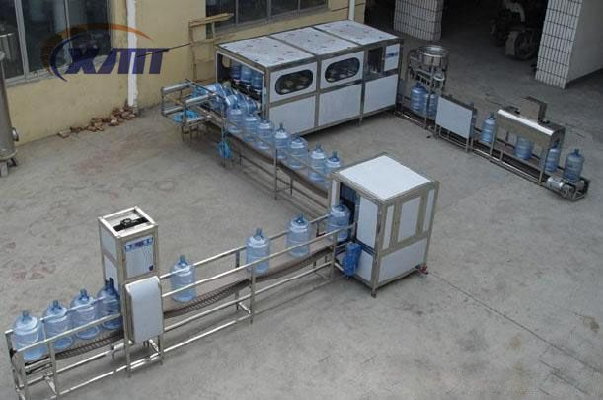

Automatic 5 gallon bucket filling machine ---Application range
5 gallon bucket filling machine is used for 5 gallon water filling, which is composed of washer, filling and capper.
1.304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts.
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows.
Automatic 5 gallon bucket filling machine ---Technical parameter
Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 3 | 4 | 5 | 6 | 8 |
Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size (mm) | 270×490 | 270×490 | 270×490 | 270×490 | 270×490 | 270×490 | 270×490 |
Capacity (b./h) | 100 | 200 | 300 | 450 | 600 | 900 | 1200 |
Gas pressure (MPA) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
Rated voltage(V) | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz |
Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
