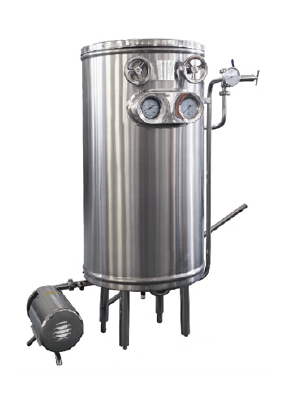

Our factory adopts advanced stainless steel welding technology abroad, selecting the fine polished stainless steel tube, which has improved greatly comparing with the former products we manufactured. Manual control, it is suitable for the liquid material, such as fresh milk, fruit milk, wine, juice, soybean milk and Chinese medicine, as well as the sticky material (for example, sweat condensed milk) upon completing with high –pressure homogenizer.

Parameter:

Model: UHT-500

Capacity: 500L/H

Temperature: 115-140℃

Steam pressure: < 0.78Mpa

Heating time: 4-6s

Outlet temperature: <45℃ (Using chilling water to low down temp)

If without chilling water, temp will be above 85℃

Inlet temperature: <65℃

Steam consumption: < 0.15kg/L material

Motor power: 1.5kw

Weight: 410kg

Overall dimension: 1000*700*1250mm

Area: 0.9m2
