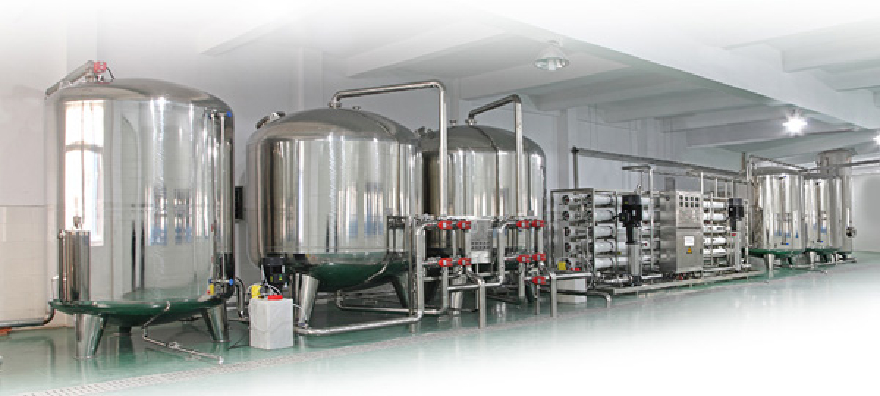

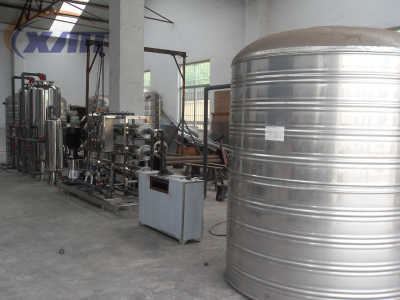

Water treatment plant

The water treatment system is divided into 3 parts: Pre-treatment, RO device and mating devices. RO is the core of the system.

A, Pre-treatment:  Original pump, Sand filter, Active carbon filter, Precision filter, etc. Functions as below:

a, Avoid incrustation generating on membranes surface; ( Includes Fe3,Fe2,CaCO3,CaCO4,SrSO4,CaF2,SiO2,Fe and Aluminum-oxide) ;

b, Avoid colloidal substance and fluidized bed block up;

c, Avoid organism block up;

d, Avoid microorganism block up;

e, Avoid breakage to membranes from oxidizing substance;

f, Make sure stable water production by UF;

g, Make sure no block up from high hardness;

B, RO unit:

RO membrane is the key part of whole RO, it will decide the system workable or not. The water passing RO can remove bacterial, organic substance and microorganism.

No phase change will be generated in RO device during water purification. Water recovery rate is high, small in dimension, high automation.

Whole SUS304 rack, automation part apply AC contactor control, apply flow meter, pressure gauge and auto flush electrical magnetic valve, etc.

Protect device:Low pressure and high pressure protect switch is set before water entry and after water discharge. Booster pump and system will stop when water supply is not enough. Make cut off on booster pump when there is too much discharge pressure to avoid system running under pressure exceeding status.

C, Control system:

It is automatic system, Interlock will be applied under auto model. Pretreatment is controlled automatically, original pump and UF unit is using integrate control. Control panel will work on system monitoring and parameter set up. Instruments and gauges are settled to show parameters. Interlock set up is good for safe running.
