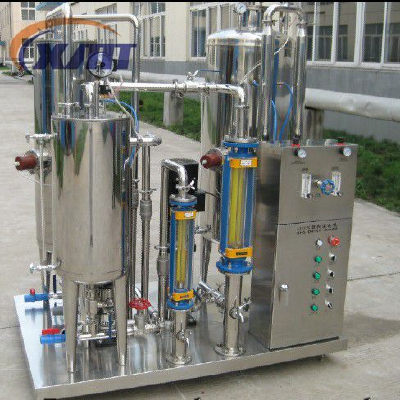

3 tanks CO2 mixing machine for soft drink production line

3 tanks CO2 mixing machine for soft drink production line

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Month
  • Port: ShangHai
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-07-31
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  XinMingTao
  • Model Number:  QHS-9000
  • Weight: 600.000 kg

3 tanks CO2 mixing machine for soft drink production line



Main features:

 1. The High ratio CO2 mixer soft drink mixer/ carbonated drink mixing machine is mainly suitable for mixing process of all kinds of carbonated drink with high gas ration.

    It make the water, sugar, gas mixed together for high quality gas drink.



2. This High ratio CO2 mixer soft drink mixer/ carbonated drink mixing machine is made with the newest technology. It is in the leading position  comparing with similar production in China.



3. It is also used in mixing slurry drink,fermented drink and other drinks.



4. This High ratio CO2 mixer soft drink mixer/ carbonated drink mixing machine is 9T/H with high gas containing, 4 times gas mixing, with 5 mixing tank, degassing function, with heat exchagner, independent electronic control box, with high pressure  mixing pump.





5.Automatic with alarm:The pressure in all tank and the liquid level if the machine are all controlled automatically with PLC.



6. Once a error occures,the alarm lamp will light and the alarm ring will sound and the mixer stop automatically.



7.Easy operation and regulation:The operation of mixer is especially convenient Only turn around the buttons according to the pre -set program,the normal operation can be carried out.The production capacity,water-  sugar proportion and gas content can be adjusted without exchanging any parts.



8.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation,Its precision can reach about 0.05%.



9.Even gas content:It has a battle heat exchanger to cool the sugarwater mixture and carry out twice carbonating.



So its carbon content is especially high.


  • Place of Origin:  China
  • Brand Name:  XinMingTao
  • Model Number:  QHS-9000
  • Weight: 600.000 kg

Technical parameter:

Model

QHS-3000

QHS-6000

QHS-9000

QHS-12000

Output

3T

6T

9T

18T

Syrup and water adjusting rate

1:3-1:10

1:3-1:10

1:3-1:10

1:3-1:10

Gas mount (CO2:H2O)

2.5

2.5

4

5

Mixing precision

2%

2%

2%

2%

Cooling water inlet temperature

0-4

0-4

0-4

0-4

Cooling water inlet pressure

0.15-0.25Mpa

0.15-0.25Mpa

0.15-0.25Mpa

0.15-0.25Mpa

Syrup inlet temperature

2~8

2~8

2~8

2~8

Syrup inlet pressure

0.1~0.2Mpa

0.1~0.2Mpa

0.1~0.2Mpa

0.1~0.2Mpa

Inlet pressure of carbon dioxide CO2

0.7~0.8Mpa

0.7~0.8Mpa

0.7~0.8Mpa

0.7~0.8Mpa

Purity of carbon dioxide CO2

99.9%

99.9%

99.9%

99.9%

Working pressure of storage tank

0.45-0.55Mpa

0.45-0.55Mpa

0.45-0.55Mpa

0.45-0.55Mpa

Motor power

5.8kw

6.3kw

14.5kw

7.2kw

External size (L*W*H)

2000×1400×2200

2100×1500×2270

2810×2010×2450

3200×2200×2500

Weight

1200kg

1350kg

1500kg

1950kg
